PU foam Insulation Board Series

Short Description:

Product Detail

Product Tags

PU foam board 5

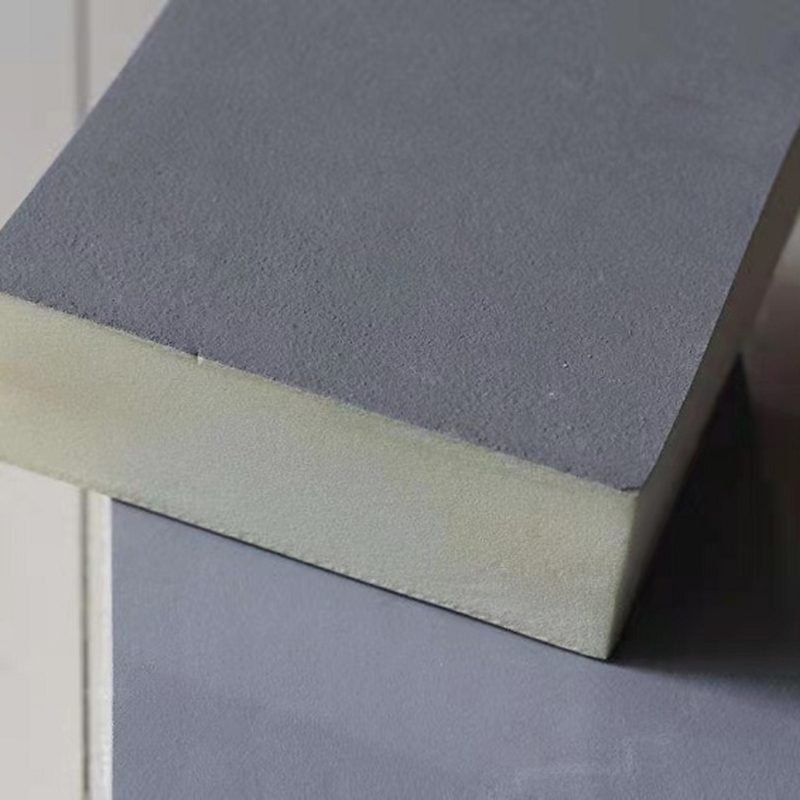

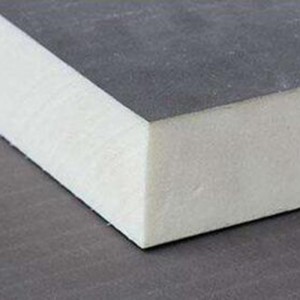

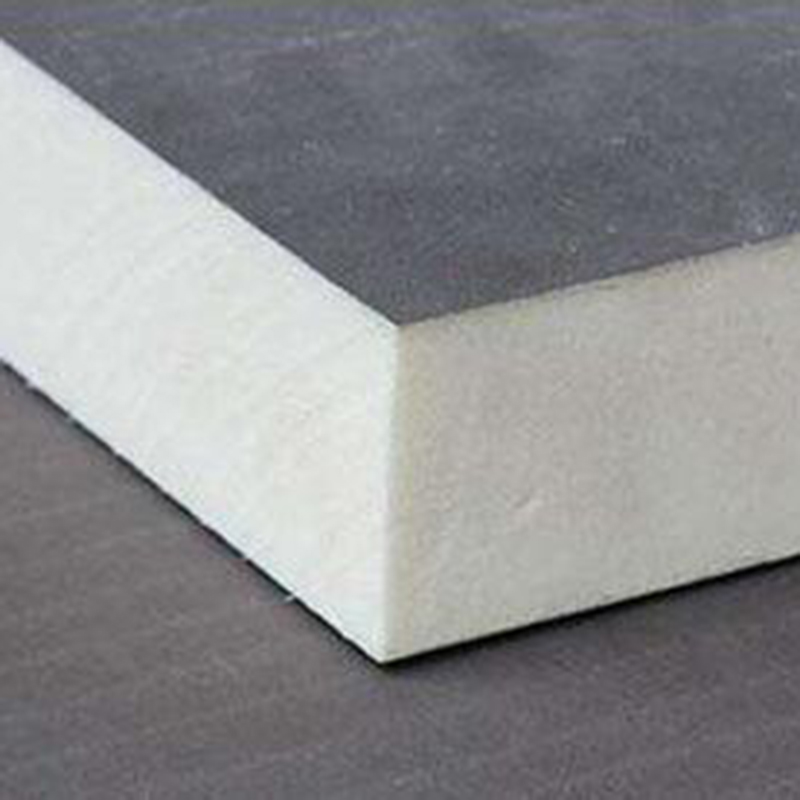

The rigid foam polyurethane composite insulation board is an insulation board with rigid foam polyurethane insulation material as the core material and a cement-based protective layer on both sides. It adopts continuous production equipment-secondary molding, which not only meets the high standards of building energy-saving insulation, but also enhances The stability of the system; the board has dual interfaces when it leaves the factory, which can effectively avoid the fire caused by cigarette butts and electric welding during the transportation, construction site stacking and wall construction; rigid foam polyurethane is a thermosetting material and will not be exposed to fire. Melting, no burning droplets, no flame propagation after forming the system, greatly improving the fire resistance during use. The double-sided cement-based surface layer can enhance the bonding strength of the insulation board, the adhesive and the plastering mortar, thereby ensuring the integrity and stability of the system.

Technical Indicators

item unit Technical Data
Density ≥ kg/m3 ≥35kg/m3
thermal conductivity ≤ W(m.K) 0.022W(m.K)
Water absorption rate ≤ % 3%
Flammability rating


  B1 B2
compressive strength≥ Kpa ≥150KPa

Product specifications

(mm)Length (mm)Width (mm)Thickness
1200 600 10mm,20mm, 30mm,40mm,50mm,60mm,70mm,80mm,90mm,


Product Pertormance Characteristics

01| Thermal insulation

Rigid polyurethane foam has a highly cross-linked structure, basically closed-cell (opening rate 5%), and extremely low thermal conductivity, only 0.021W/(m.K).

02| Economy

It has a long use time and good thermal insulation performance. Its thickness is 2/3 thinner than thermal insulation slurry and 1/3 thinner than polystyrene board. The comprehensive cost performance per unit square area is excellent.


Polyurethane rigid foam mainly adopts special halogen-free flame-retardant polyether polyol, and adds a phosphorus-based flame retardant with a synergistic effect to achieve a halogen-free flame-retardant structure in the foam molecules without increasing the amount of isocyanate. The flame-retardant performance has reached the B1 standard; the polyurethane external wall insulation system has passed multi-project and multi-system demonstration, and there will be no phenomenon of insulation material falling off after engineering application.

04|Environmental protection

Adopting fluorine-free foaming technology and aldehyde-free products, it belongs to green building materials.


It has good chemical resistance and can be used for a long time at a temperature of -180°C ~150C. It has excellent weather resistance and freeze-thaw resistance and can be used for up to 50 years.


The construction process is simple, safe and reliable, and different construction processes can be selected for different purposes.
